Anping Yuntong Metal Wire Mesh Co.,Ltd Quality For Survival , Innovation For Growth .
9 Years
| Ask Lasest Price | |
| Brand Name : | Yuntong |
| Model Number : | YT- F188 |
| Certification : | CE , SGS |
| Payment Terms : | T/T, Western Union,PayPal |
| Supply Ability : | 300Sqm/Week |
| Delivery Time : | 5-8 Work Days |

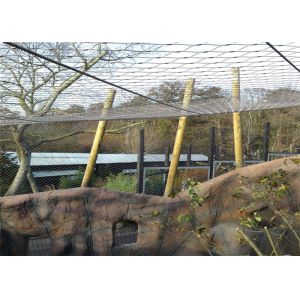

Hand Woven X-tend Wire Rope Ferruled Mesh Zoo Mesh / Animal Enclosure
X-tend Wire Rope Mesh Specifications :
Mesh Eye Size (Opening) | 1.2mm(3/64) (7 x 7 ) | 1.6mm(1/16) (7 x 7 ) | 2.0mm(5/64) (7 x 7 ) | 2.4mm(3/32) (7 x 7 ) | 3.2mm(1/8) (7 x 19 ) |
| 20 x 35mm | YT-1235 | ||||
| 25 x 42mm | YT-1225 | YT-1625 | |||
| 30 x 52mm | YT-1230 | YT-1630 | YT-2030 | ||
| 35 x 60mm | YT-1235 | YT-1635 | YT-2035 | ||
| 38 x 66mm | YT-1238 | YT-1638 | YT-2038 | YT-2438 | |
| 40 x 69mm | YT-1240 | YT-1640 | YT-2040 | YT-2440 | YT-3040 |
| 50 x 86mm | YT-1250 | YT-1650 | YT-2050 | YT-2450 | YT-3050 |
| 60 x 104mm | YT-1260 | YT-1660 | YT-2060 | YT-2460 | YT-3060 |
| 70 x 120mm | YT-1270 | YT-1670 | YT-2070 | YT-2470 | YT-3070 |
| 76 x 131mm | YT-1276 | YT-1676 | YT-2076 | YT-2476 | YT-3076 |
| 80 x 138mm | YT-1280 | YT-1680 | YT-2080 | YT-2480 | YT-3080 |
| 90 x 154mm | YT-1290 | YT-1690 | YT-2090 | YT-2490 | YT-3090 |
| 100 x 173mm | YT-12100 | YT-16100 | YT-20100 | YT-24100 | YT-30100 |
| 120 x 206mm | YT-12120 | YT-16120 | YT-20120 | YT-24120 | YT-30120 |
Customized:
Frame Systems
Stainless steel wire rod, round tube, square tube and other shape
tube.
Rectangular panel, trapezoid panel, round shape panel and other
special shape paneld netting
Colored Finished
Black oxide.
Colourful ferrules assembled with standard stainless steel wire
rope.
Colourful stainless steel wire rope assembled with standard
ferrules.
Stainless steel suspension bridge railing mesh are the great
projects of humans. And a suspension bridge is made up of three
components: deck (the load-bearing portion), railing and suspension
cables. The railings of many suspension bridges are made of
stainless steel rope mesh, namely stainless steel suspension bridge
railing mesh. Why stainless steel rope mesh can play so important
role? Because it has many incomparable features: light weight and
soft.
Stainless steel suspension bridge rope mesh is light, making the
hands if you touch it.
| SS304 | (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035 |
| SS316 | (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5 |
| SS316L | (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0 |
|
|
